Upgrading the headlights on your Jeep JK is one of the best ways to improve both safety and style. Many Jeep owners find the factory lights too dim, especially for night driving or off-road adventures. Modern LED or projector headlights can make a huge difference.
But for many, the idea of installing new headlights sounds complicated or risky. The good news? Swapping out Jeep JK headlights is actually a straightforward project that even beginners can handle with basic tools and a bit of guidance.
This guide explains everything you need to know about choosing, preparing for, and installing new headlights on your Jeep JK. You’ll find step-by-step instructions, practical tips, and answers to common questions that pop up during the process. Whether you want a brighter view on dark trails or a fresh look for your ride, you’ll finish with confidence and knowledge to get the job done right.
Why Upgrade Jeep Jk Headlights?
The stock Jeep JK headlights use halogen bulbs that often provide weak and yellowish light. This can be a safety concern, especially in poor weather or when driving in rural areas. Many Jeep drivers notice better results after upgrading to LED or HID options.
Benefits of upgraded headlights:
- Brighter illumination: You’ll see road hazards, signs, and wildlife much sooner.
- Wider beam pattern: Improved side-to-side visibility.
- Longer lifespan: LED and HID bulbs can last over 20,000 hours.
- Lower power draw: Modern headlights use less energy, which reduces strain on your Jeep’s electrical system.
- Modern appearance: New lights can give your Jeep a custom, high-end look.
Some owners also report fewer problems with fogging or condensation inside the headlight housing after switching to higher-quality units.
What You’ll Need For Installation
Preparation is key to a smooth install. Make sure you have these items ready:
- Replacement headlights: Double-check that your new headlights are designed for the Jeep JK (model years 2007–2018).
- Basic hand tools: Phillips screwdriver, flathead screwdriver, and a 10mm socket or nut driver.
- Torx bit set: Common sizes like T15 and T20 are needed for some trim pieces.
- Trim removal tool (plastic): Helps prevent scratches when prying off clips.
- Dielectric grease: Optional, but helps protect electrical connectors from moisture.
- Gloves: Keeps your hands clean and prevents fingerprints on bulbs.
- Zip ties or tape: Useful for securing extra wiring.
Most Jeep JK headlight upgrades are plug-and-play, so you won’t need to cut or splice wires. However, some advanced LED kits may require a small wiring harness or anti-flicker adapter (sometimes called a CANbus decoder).
Credit: gglights.com
Understanding Headlight Types
Before buying, it’s important to know the main options:
| Type | Brightness (Lumens) | Typical Lifespan | Installation Complexity |
|---|---|---|---|
| Halogen | 700–1,200 | 500–1,000 hours | Very Easy |
| LED | 3,000–6,000 | 20,000+ hours | Easy–Medium |
| HID/Xenon | 3,000–5,000 | 2,000–3,000 hours | Medium |
Most Jeep JK owners choose LED headlights for their brightness and long life. HIDs are less common but can also provide a big improvement over stock.
Step-by-step: How To Install Jeep Jk Headlights
1. Park And Prepare
- Park your Jeep on a flat surface.
- Turn off the engine and remove the key.
- Disconnect the negative battery terminal with your 10mm socket. This prevents accidental short circuits.
2. Remove The Grille
- Open the hood.
- Locate the plastic clips along the top of the grille (usually 6).
- Use a flathead screwdriver or trim tool to gently pop these clips upward.
- Carefully pull the grille forward at the top, then wiggle the bottom free from the bumper. The grille will pull straight out—don’t yank too hard or you might break a clip.
3. Unscrew The Headlight Retaining Ring
- Each headlight is held in place by a metal retaining ring with three Torx screws.
- Use the correct Torx bit (usually T15 or T20) to remove these screws.
- Set the screws and ring aside—you’ll need them for the new headlights.
4. Disconnect The Old Headlights
- Gently pull the headlight forward.
- Unplug the wiring harness from the back of the headlight.
- Inspect the connector for corrosion or dirt. Clean if necessary.
5. Prepare And Install The New Headlights
- If your new headlights have a plug-and-play connector, simply align it with the factory harness and press until it clicks.
- For headlights with an adapter harness or anti-flicker module, connect these parts following the included instructions.
- Apply a small amount of dielectric grease to the connector (optional) to prevent moisture issues.
- Fit the new headlight into the housing. Make sure the alignment tabs are in the correct slots.
6. Secure The Headlight
- Place the retaining ring back over the headlight.
- Start all three screws by hand to avoid cross-threading.
- Tighten the screws evenly, but do not overtighten—this can crack the headlight or ring.
7. Test Before Reassembly
- Reconnect the battery terminal.
- Turn on your headlights (and high beams) to test both sides.
- Check for proper function, beam pattern, and any flickering.
- If you see issues (like flickering or “headlight out” warning), you may need a CANbus adapter. These are common with some LED kits.
8. Reinstall The Grille
- Align the grille tabs at the bottom with the slots in the bumper.
- Push the top of the grille into place.
- Reinstall the plastic clips along the top edge.
9. Final Adjustments
- Park your Jeep about 25 feet from a wall or garage door.
- Turn on the headlights and check the beam pattern.
- If the beams are too high or low, use the adjustment screws on the headlight housing to fine-tune the aim.
- Properly aimed headlights should strike the wall at about the height of your headlights or just below, to avoid blinding other drivers.

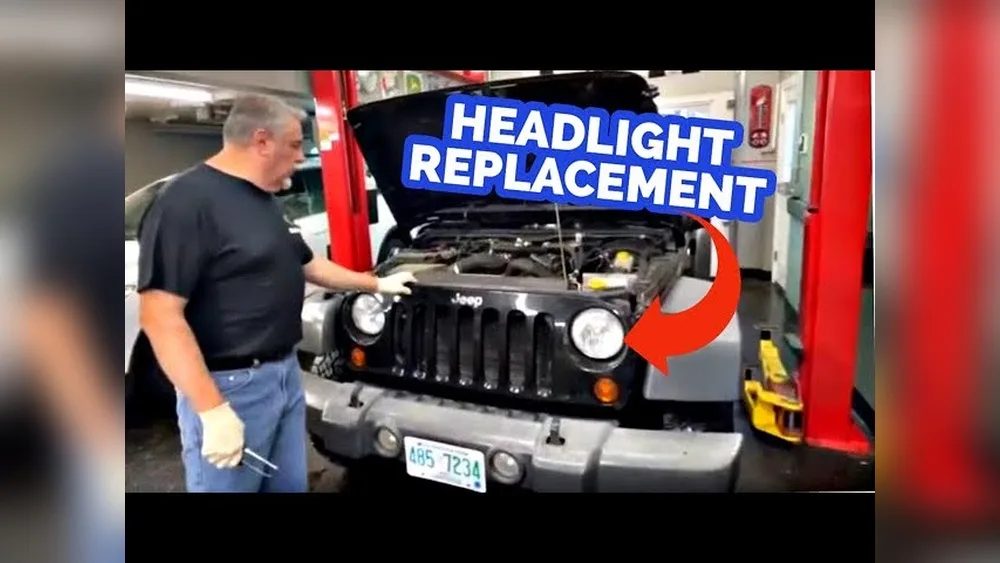

Credit: www.youtube.com
Common Mistakes To Avoid
- Forgetting to disconnect the battery: This can cause blown fuses or short circuits.
- Losing clips or screws: Use a small tray or magnet to keep track of hardware.
- Touching the glass on halogen bulbs: Oils from your skin can shorten bulb life.
- Overtightening screws: Can crack the headlight or trim.
- Not testing before full reassembly: If something is wrong, you’ll have to take it all apart again.
Comparing Popular Jeep Jk Headlight Upgrades
To help you decide, here’s a quick comparison of three well-known LED headlight options for Jeep JK models:
| Brand/Model | Brightness | Warranty | Price Range | Special Features |
|---|---|---|---|---|
| JW Speaker 8700 Evolution J2 | 3,200 lumens | 5 years | High ($300+) | Heated lens, DOT-approved |
| KC HiLiTES Gravity LED | 2,400 lumens | 23 years | High ($300+) | Plug-and-play, classic style |
| Xprite LED Headlights | 3,600 lumens | 1 year | Medium ($100–$150) | Halo DRL, multiple colors |
Non-obvious insight: Cheaper options sometimes use the same internal LED chips as high-end brands but may lack advanced features like heated lenses or lifetime warranty.
Aiming Your New Headlights
Proper headlight aim is often overlooked, but it’s essential for safety. Poorly aimed headlights can blind oncoming drivers or leave you with dark spots.
How To Aim Jeep Jk Headlights
- Park 25 feet from a flat wall with the Jeep on a level surface.
- Measure the height from the ground to the center of the headlight.
- Place masking tape on the wall at this height.
- Turn on the low beams. The top edge of the beam should hit the tape or just below.
- Adjust using the screws on the back of the headlight (usually accessible with a Phillips screwdriver).
Tip: Always check both sides—uneven aim can make night driving dangerous.
Practical Tips For A Smooth Installation
- Take photos before disassembling. This helps you remember clip locations and wiring.
- Work in daylight or use a bright LED work light.
- If your kit includes extra wiring for halo rings or DRLs (daytime running lights), plan where you’ll connect these. Some people tap into the parking light circuit, while others prefer a separate switch.
- Save your stock headlights. You might need them for inspections or when selling your Jeep.
- If you live in a cold climate, consider heated LED headlights to prevent snow and ice buildup.
Legal And Safety Considerations
Check your local laws before installing aftermarket headlights. Some states require DOT-approved or SAE-certified headlights. Bright off-road lights are not always legal for use on public roads.
If your new lights include a colored halo (blue, red, etc. ), these are often illegal for street use. Stick to white or amber for daily driving.
For more information on headlight laws and standards, you can review the U.S. Department of Transportation’s guidelines at the NHTSA official website.
Frequently Asked Questions
How Long Does It Take To Install Jeep Jk Headlights?
Most people can complete the installation in about 45 minutes to 1 hour. If you’re new to DIY car work, allow a bit more time for careful disassembly and testing.
Do I Need To Rewire My Jeep For Led Headlights?
Usually not. Most high-quality LED headlights for the Jeep JK are plug-and-play. Some kits include a wiring harness or CANbus adapter to prevent flicker or error messages. Always follow the included instructions.
Will New Headlights Drain My Battery Faster?
No. LED headlights actually use less power than halogen bulbs. This means less strain on your battery and alternator.
Are Aftermarket Jeep Jk Headlights Waterproof?
Most reputable brands design their headlights to be water-resistant or waterproof. Check the product’s IP rating (like IP67 or IP68) for details. Avoid cheap headlights with poor sealing, as they may fog or fail after rain or car washes.
Can I Install New Headlights Without Special Tools?
Yes. All you need is a basic set of screwdrivers, a socket for the battery, and a Torx bit. A trim removal tool makes things easier but isn’t required.
Upgrading your Jeep JK headlights is a project that pays off every time you drive at night or hit the trails. With the right preparation and a little care, you can enjoy brighter, safer, and more stylish lighting—while learning valuable DIY skills along the way.
