A winch is a powerful tool for off-road drivers, recovery professionals, and anyone who tows heavy loads. But even the best winch can hit its limits in tricky situations. That’s where a winch snatch ring steps in. This small, smart device is changing how people handle tough recovery jobs and making towing safer, easier, and more efficient.
What Is A Winch Snatch Ring?
A winch snatch ring is a compact pulley made from metal or aluminum alloy. It replaces the traditional snatch block, offering a lighter and simpler way to change the direction of your winch line. Unlike old-style snatch blocks, snatch rings are designed for synthetic winch ropes and have no moving parts. This means fewer things can go wrong in the field.
To use one, you loop a soft shackle or recovery rope through the ring and attach both to a recovery point. The winch line passes through the smooth groove in the ring. When you pull, the rope slides easily, letting you double your pulling force or redirect the line.
How A Winch Snatch Ring Boosts Towing Performance
1. Increases Pulling Power
The most important benefit is the mechanical advantage. By running your winch line through the snatch ring and back to your vehicle, you double the pulling force. For example, a 12,000-pound winch can now pull up to 24,000 pounds (minus friction losses). This is essential when towing heavy vehicles or freeing a stuck truck from mud.
2. Allows For Angled Pulls
Towing rarely happens in a straight line. A snatch ring lets you change the winch line direction safely. You can anchor to a tree or another vehicle at an angle, then winch from the side. This flexibility is vital when obstacles or terrain make a straight pull impossible.
3. Lightweight And Easy To Carry
Snatch rings are much lighter than traditional snatch blocks. Most weigh less than 1 pound, while a steel snatch block can be 3-5 pounds. You can keep several rings in your kit without adding bulk.
4. Faster And Safer Setup
With no pins or moving parts, a snatch ring is simple to use. Connect the soft shackle, thread the line, and you’re ready. There’s less risk of dropping parts or pinching fingers. The smooth surface also reduces wear on synthetic ropes.
5. Reduces Winch Strain
Doubling the line through a snatch ring splits the load. Your winch motor works less hard, runs cooler, and lasts longer. This can prevent winch failure during critical recoveries.
6. Works With Modern Synthetic Ropes
Snatch rings are designed for synthetic winch ropes. Steel cable can damage both the ring and itself, but synthetic rope glides smoothly with minimal friction.

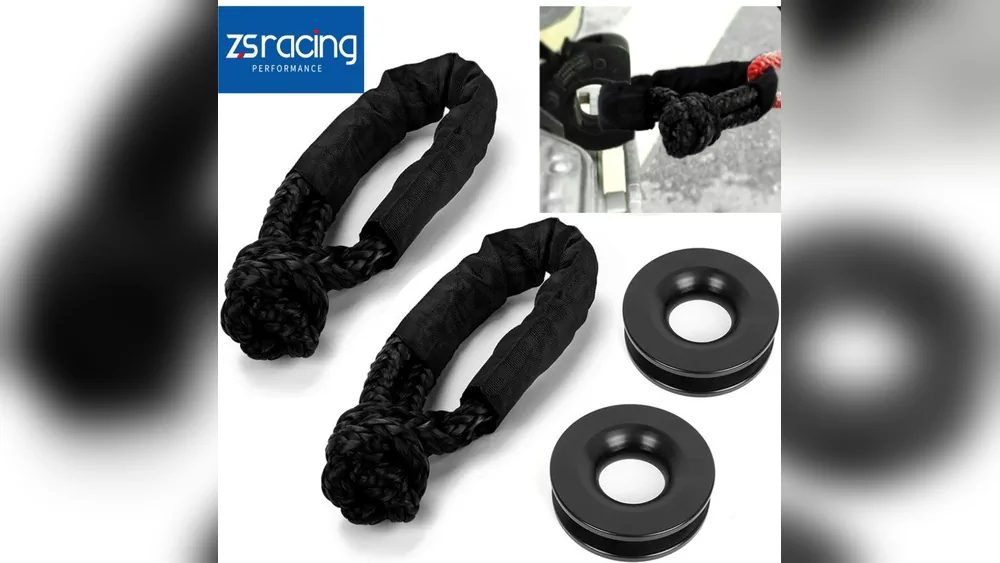

Credit: www.tum-som.com
Comparing Snatch Rings And Traditional Snatch Blocks
Many users wonder how a snatch ring stacks up against the classic snatch block. The table below highlights the main differences.
| Feature | Snatch Ring | Snatch Block |
|---|---|---|
| Weight | Light (0.5-1 lb) | Heavy (3-5 lbs) |
| Compatibility | Synthetic rope only | Synthetic rope and steel cable |
| Moving Parts | None | Yes |
| Setup Speed | Fast | Slower |
| Maintenance | Low | High |
Practical Scenarios: How Snatch Rings Improve Towing
Off-road Recovery
Imagine your SUV is stuck in deep sand, and there’s a tree 30 feet off to the side. Using a snatch ring, you can anchor to the tree, redirect your winch line, and pull yourself out at an angle the winch alone couldn’t manage.
Towing Large Trailers
When pulling a heavy trailer up a slope, doubling your winch line with a snatch ring makes the load manageable. This reduces the stress on the winch and battery.
Team Recoveries
In group recoveries, snatch rings allow for multi-point pulls. You can use several anchor points, adjusting the winch line’s path for maximum safety and efficiency.
Real-world Performance: Data And Insights
Tests show that using a snatch ring with a soft shackle can reduce the setup time by up to 40% compared to snatch blocks. Field reports also note that synthetic ropes last up to 20% longer when regularly used with snatch rings instead of metal pulleys.
Another advantage: the average breaking strength of a quality snatch ring is over 40,000 pounds. For most 4×4 and towing tasks, this is more than enough.
Here’s a quick comparison of breaking strengths and uses:
| Device | Average Breaking Strength | Best For |
|---|---|---|
| Snatch Ring | 40,000+ lbs | SUVs, light trucks, UTVs |
| Snatch Block | 30,000-50,000 lbs | Heavy trucks, steel cable |
Choosing The Right Snatch Ring
Not all snatch rings are the same. Pay attention to these details:
- Material: Aircraft-grade aluminum is lightweight and strong. Avoid cheap alloys.
- Groove Size: Match the groove to your synthetic rope diameter.
- Surface Finish: A smooth, anodized finish reduces friction and extends rope life.
- Rated Capacity: Always choose a ring with a breaking strength much higher than your winch.
Some users make the mistake of buying rings meant for smaller ATVs and using them on heavy trucks. This can be dangerous. Always check the manufacturer’s rating.

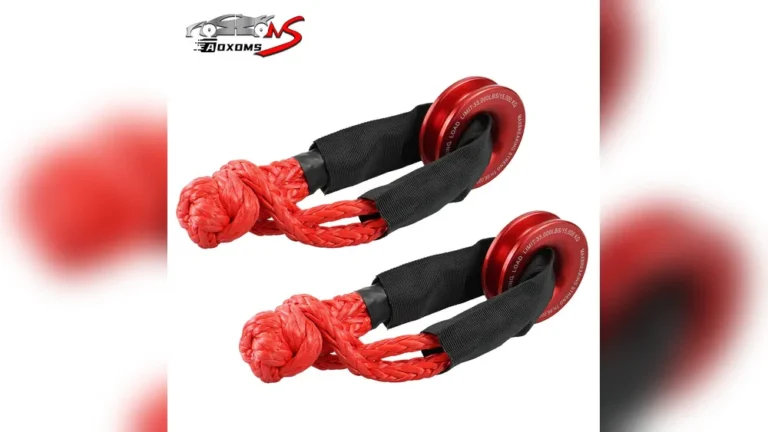

Credit: www.liberia.ubuy.com
Maintenance Tips For Long Life
Snatch rings need little care, but a few habits will keep them reliable:
- Clean after each use, especially if exposed to mud or sand.
- Check for deep scratches or cracks before every trip.
- Store with your recovery kit, away from corrosive chemicals.
A good snatch ring can last many years if used and stored correctly.
Common Beginner Mistakes
- Using with Steel Cable: Snatch rings are for synthetic ropes only. Steel can cut into the ring or cause failure.
- Overloading: Never exceed the rated strength. It’s better to oversize than risk breakage.
- Improper Anchoring: Always use a strong, stable anchor point and a rated soft shackle.
Ignoring these rules can lead to equipment failure and injury.
Credit: www.ebay.com
Frequently Asked Questions
What Is The Main Purpose Of A Winch Snatch Ring?
The main purpose is to double your winch’s pulling power or change the pulling direction. This makes tough recoveries safer and easier, especially with synthetic winch ropes.
Can I Use A Snatch Ring With A Steel Cable?
No. Snatch rings are made for synthetic winch ropes only. Steel cables can damage the ring and may cause dangerous failures.
How Do I Choose The Right Size Snatch Ring?
Match the ring’s groove size to your winch rope diameter, and ensure the ring’s load rating is higher than your winch’s maximum pull.
Are Snatch Rings Safer Than Snatch Blocks?
Snatch rings are safer for synthetic ropes and reduce the risk of pinched fingers, but always use proper recovery techniques and rated equipment.
Where Can I Learn More About Winch Safety?
You can read more about winch safety and towing best practices at the Wikipedia Winch page.
Snatch rings are a modern upgrade for towing and recovery. With the right setup and safe techniques, they make challenging recoveries faster, lighter, and more reliable. For anyone serious about off-roading or towing, adding a winch snatch ring to your kit is a smart move.
