If you own a Jeep Wrangler, you already know it’s a symbol of adventure. But for many Wrangler owners, the electrical system—especially the headlight wiring—can be confusing. Whether you want to replace a bulb, upgrade to LEDs, or troubleshoot a lighting issue, understanding how the system works can save you time, money, and frustration. This guide breaks down every part of Jeep Wrangler headlight wiring, explains what goes where, and highlights common mistakes to avoid. Let’s make sense of those wires so your Jeep is always ready for the road ahead.
The Basics Of Jeep Wrangler Headlight Wiring
Every vehicle needs headlights for safe driving at night and during bad weather. The Jeep Wrangler headlight wiring connects the battery, switches, relays, and bulbs. The system may look simple on older Jeeps, but newer models add complexity with features like automatic headlights and DRLs (daytime running lights).
The wiring does more than just turn the lights on and off. It controls high and low beams, connects to the dashboard indicator, and sometimes even adjusts headlight aim. Knowing the basics helps you handle repairs and upgrades confidently.
Main Parts Of The System
- Battery: Supplies power to the entire electrical system.
- Headlight Switch: Lets you turn headlights on and off.
- Dimmer/Multifunction Switch: Selects high or low beams.
- Relays: Protect switches from high current; used in most Wranglers.
- Fuses: Prevent damage from electrical shorts or overloads.
- Wiring Harness: Bundles wires together for neat routing.
- Connectors: Link wiring harness to headlights and switches.
- Headlight Bulbs: The end point; can be halogen, HID, or LED.
Each part must be in good condition for your headlights to work reliably.
Jeep Wrangler Headlight Wiring By Model Year
Jeep Wranglers have evolved over decades. Headlight wiring differs between older YJ, TJ, and newer JK, JL, and Gladiator models. Here’s how:
| Model | Years | Headlight Type | Wiring Notes |
|---|---|---|---|
| YJ | 1987–1995 | Sealed Beam | Simple, few relays, basic wiring |
| TJ | 1997–2006 | Halogen | More relays, similar wiring colors |
| JK | 2007–2018 | Halogen/LED | More complex, CAN bus integration |
| JL | 2018–present | LED/Projector | Advanced, uses modules and sensors |
Older Wranglers are easier to work on, while newer ones require more care due to digital controls and additional safety features.
Credit: www.jkowners.com
Understanding The Wiring Diagram
A wiring diagram is like a map. It shows how every wire connects to switches, relays, and bulbs. Most Wrangler manuals include a wiring diagram, but symbols and colors can be confusing if you’re new.
- Black: Usually ground
- Red or Pink: Power supply
- Green, Blue, White: Often used for signal or switched wires
When reading the diagram, follow the line from the battery through the fuse, relay, and switch to the bulb. Notice if there are extra modules for features like auto-dimming or DRLs.
Non-obvious insight: Some model years reverse the polarity at the headlight plug compared to other vehicles. This is why universal LED kits often flicker or won’t turn on without an adapter.
Headlight Wiring Colors And Functions
Jeep uses color-coded wires, but they can vary by year. Here’s a typical example for a JK model:
| Wire Color | Function |
|---|---|
| White/Yellow | Low Beam Positive |
| White/Green | High Beam Positive |
| Black | Ground |
Always double-check your Jeep’s service manual. Aftermarket wiring can change color codes, and custom installations might not follow factory standards.
Credit: loyo-led.com
Common Headlight Wiring Problems
Even with careful use, the Wrangler’s wiring can develop issues. Here are the most frequent problems and what causes them:
- Flickering Lights: Often due to poor ground connections or a failing relay.
- One Headlight Out: Possible broken wire, bad bulb, or corroded connector.
- Both Headlights Out: Check the fuse and main relay first.
- Dim Lights: Weak ground or voltage drop from old wires.
- Upgraded LEDs Not Working: CAN bus errors, reversed polarity, or the need for anti-flicker harnesses.
Example: A 2012 Wrangler owner installs aftermarket LEDs. They flicker, so he adds a CAN bus adapter—problem solved. This happens because the Jeep’s computer “sees” the low power draw and thinks the bulb is burned out.
Step-by-step: Replacing Or Repairing Headlight Wiring
Working on headlight wiring is safe if you disconnect the battery and follow these steps:
1. Diagnose The Problem
- Check fuses and relays first. If a fuse is blown, find out why before replacing it.
- Test the bulb in another socket to confirm it isn’t the issue.
- Wiggle connectors and wires to check for loose or broken connections.
2. Remove The Headlight
- Open the hood.
- Remove the grille clips and pull the grille forward.
- Unscrew the headlight retaining ring.
- Gently pull the headlight out.
3. Inspect And Repair Wiring
- Look for cracked insulation, corroded pins, or melted connectors.
- Cut out damaged wire and splice in new wire of the same gauge.
- Use solder and heat-shrink tubing for best results, or quality crimp connectors.
- Clean all ground points with sandpaper before reassembly.
4. Install And Test
- Plug everything back in.
- Reconnect the battery.
- Turn on the headlights and check all functions—low, high, and DRL if equipped.
Non-obvious insight: Aftermarket headlights often need extra relays or adapters because the Jeep’s wiring isn’t designed for higher-wattage or LED bulbs. Skipping these can damage the computer or cause flickering.

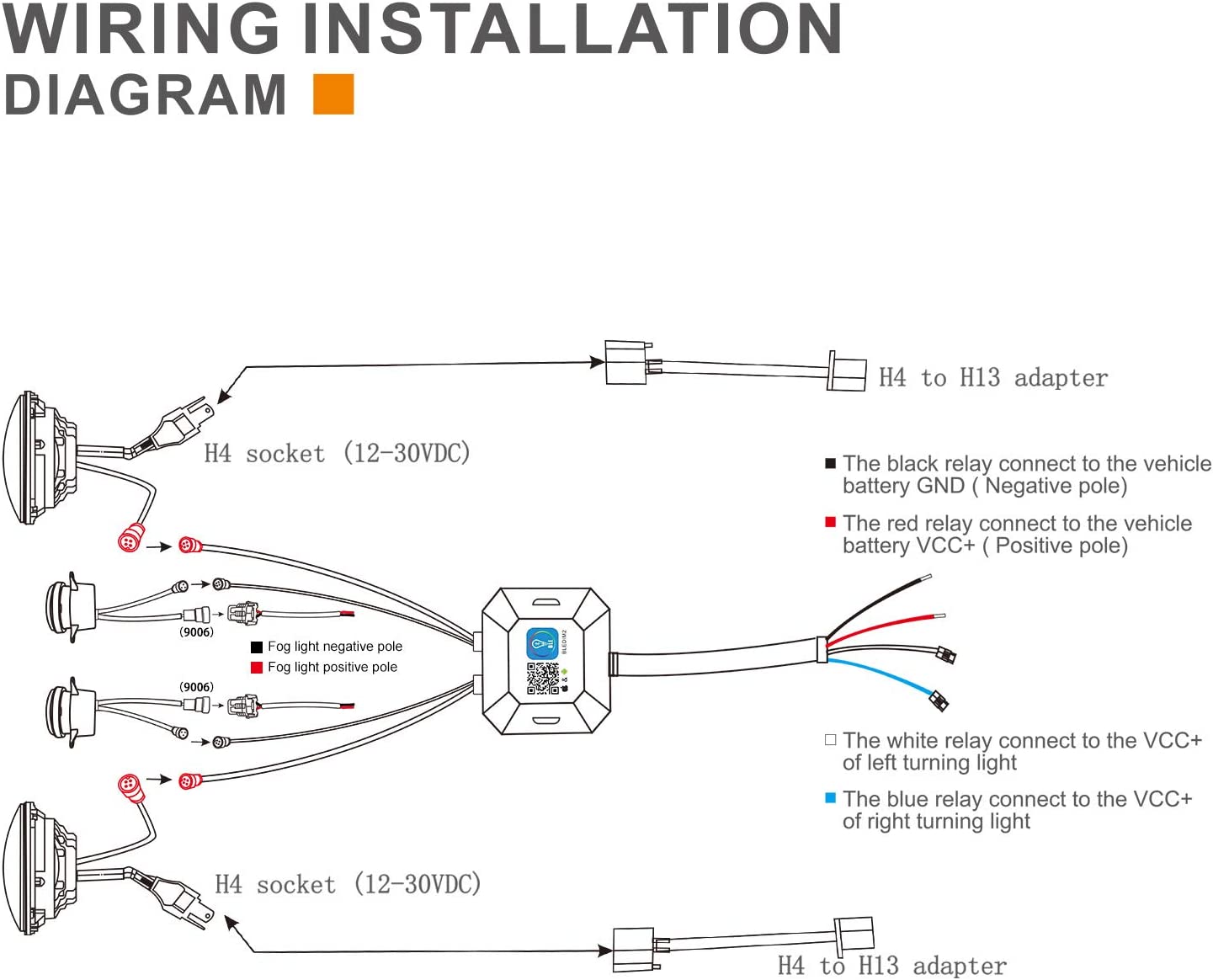

Upgrading To Led Or Hid Headlights
Many Wrangler owners want brighter headlights. Upgrading to LED or HID is possible, but there are key points to consider:
- Compatibility: Not all LED or HID kits fit factory wiring. Some need adapters or anti-flicker harnesses.
- Wiring Load: LEDs draw less power, sometimes confusing the Jeep’s electrical system.
- Legal Compliance: Check if your upgrade meets local laws—some kits are too bright or not road legal.
Example: Jk Wrangler Led Headlight Upgrade
- Remove old halogen headlights.
- Plug in LED headlights and test.
- If flickering or error codes appear, add a CAN bus adapter.
- Secure all wiring away from hot or moving parts.
Most LED upgrades take less than an hour but require careful testing. Always use a high-quality kit to avoid electrical problems.

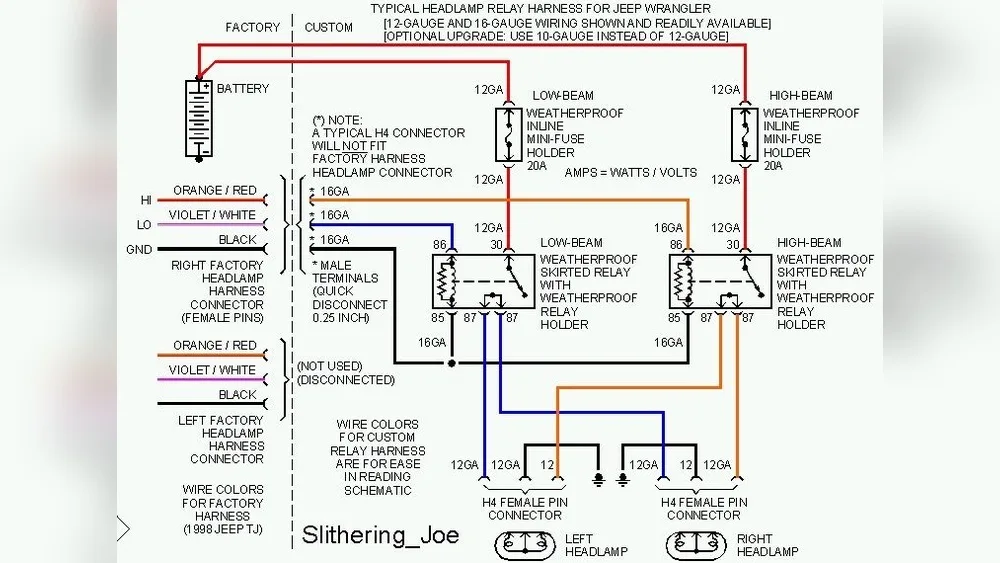

Using Relays And Upgraded Wiring Harnesses
Factory wiring works for stock headlights, but if you upgrade to high-power bulbs, consider a relay harness. It moves the heavy electrical load off the switches and sends power directly from the battery to the headlights.
Benefits:
- Brighter, more reliable lights
- Less wear on factory switches
- Reduces voltage drop
Common mistake: Many DIYers skip the relay harness and burn out their headlight switch or melt connectors. Relays are cheap insurance for your electrical system.
Troubleshooting Tips For Common Issues
If your Wrangler’s headlights aren’t working, try these troubleshooting steps:
- Check the Fuses: The fuse box is usually under the hood or behind the glove box.
- Inspect Relays: Swap with a similar relay to test.
- Test Grounds: Use a multimeter to check for good ground at the headlight connector.
- Check Voltage: Should read close to battery voltage at the headlight plug with lights on.
- Look for Corrosion: Salt and water can corrode connectors, especially in older Jeeps.
If all else fails, follow the wiring diagram from the battery to the bulb, checking each connection.
Example: Diagnosing A High Beam Issue
Suppose your high beams don’t work, but low beams do. Here’s a step-by-step:
- Check the high beam fuse.
- Test the multifunction switch.
- Inspect the relay.
- Verify wiring from the switch to the relay and out to the headlights.
If all these check out, the bulb or connector is likely bad.
Headlight Wiring And Off-road Accessories
Wranglers are built for off-road fun. Many owners add auxiliary lights or light bars. These draw extra power and require their own relays and wiring harnesses. Never splice extra lights into factory headlight wires—this can cause overloads and electrical fires.
Best practice: Use a dedicated relay and fuse for each accessory, and always route wires safely away from heat and moving parts.
Cost Of Headlight Wiring Repairs And Upgrades
Here’s a typical range for DIY and shop repairs:
| Repair/Upgrade | DIY Cost (USD) | Shop Cost (USD) |
|---|---|---|
| Replace Bulb | 10–50 | 50–120 |
| Repair Broken Wire | 5–20 | 50–150 |
| Upgrade to LED | 80–300 | 200–500 |
| Add Relay Harness | 20–60 | 80–200 |
DIY saves money, but always follow safety guidelines. Poor wiring can cause serious damage.
Credit: ntxglow.com
Safety Tips When Working With Headlight Wiring
- Always disconnect the battery before working on wiring.
- Use proper tools—never poke wires with random metal objects.
- Replace corroded connectors, not just the wire.
- Route wires away from sharp edges and hot surfaces.
- Double-check all connections before closing the hood.
Pro tip: Label wires as you remove them. This prevents confusion during reassembly, especially if upgrading or modifying your Jeep’s lighting.
When To Seek Professional Help
While many Wrangler owners enjoy DIY projects, some wiring issues need expert attention:
- If you see smoke, melted insulation, or smell burning plastic, stop and call a pro.
- Modern Wranglers (JK, JL) with advanced electronics are tricky; mistakes can trigger warning lights or disable safety systems.
- If you’re unsure, have an automotive electrician check your work.
For wiring diagrams, always consult your owner’s manual or trusted online resources like Jeep Official Site.
Frequently Asked Questions
What Tools Do I Need To Repair Jeep Wrangler Headlight Wiring?
You need basic hand tools such as screwdrivers, wire strippers, crimpers, a multimeter, and electrical tape. For best results, use heat-shrink tubing and quality connectors.
Why Do Led Headlights Flicker In My Jeep Wrangler?
Flickering happens when the CAN bus system detects low power draw from LEDs. Solve this with anti-flicker harnesses or CAN bus adapters designed for your Jeep model.
Can I Splice New Lights Into My Existing Headlight Wiring?
It’s not safe. Adding extra lights to factory wiring can overload the circuit and cause failures or fires. Always use a dedicated relay and fuse for new accessories.
How Do I Find A Bad Ground In My Jeep’s Headlight Wiring?
Use a multimeter to test continuity between the ground wire at the headlight connector and the battery negative terminal. High resistance means a poor ground.
Do I Need A Relay Harness For Led Or Hid Headlights?
Yes, in most cases. A relay harness ensures your headlights get full voltage and protects factory wiring and switches from damage.
Understanding your Jeep Wrangler’s headlight wiring isn’t just about fixing problems—it’s about making your adventures safer and more reliable. Armed with this knowledge, you can tackle upgrades, repairs, and troubleshooting with confidence, and keep your Jeep lighting the way forward no matter where your journey takes you.
